2003 Two Channel Digital Signal Function Generator Arbitrary Waveform Generator 25MHz, 160MSa/S Frequency Counter with USB

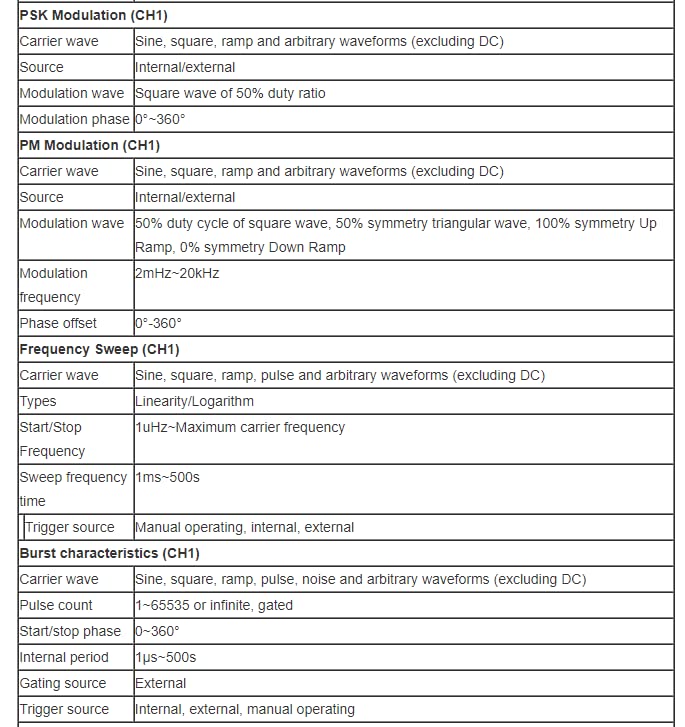

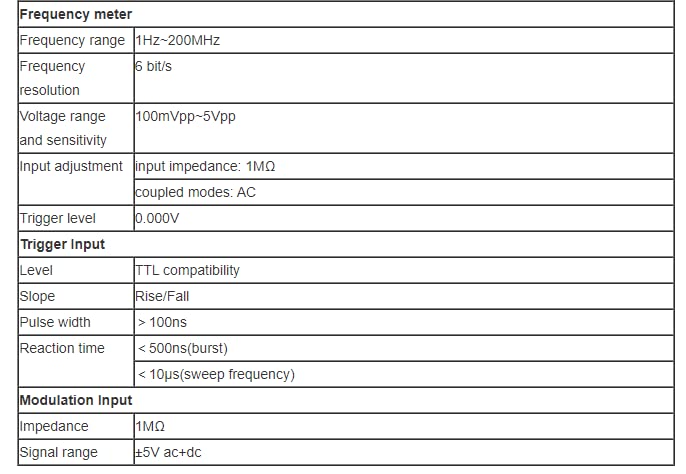

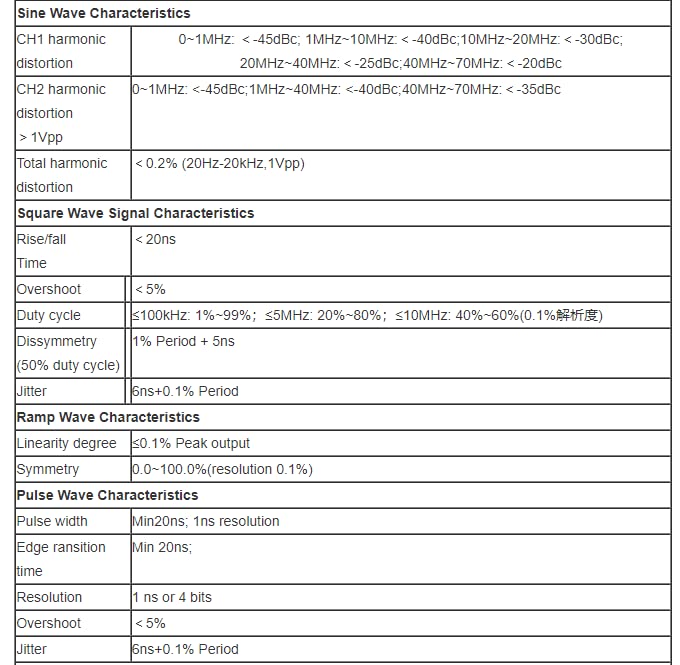

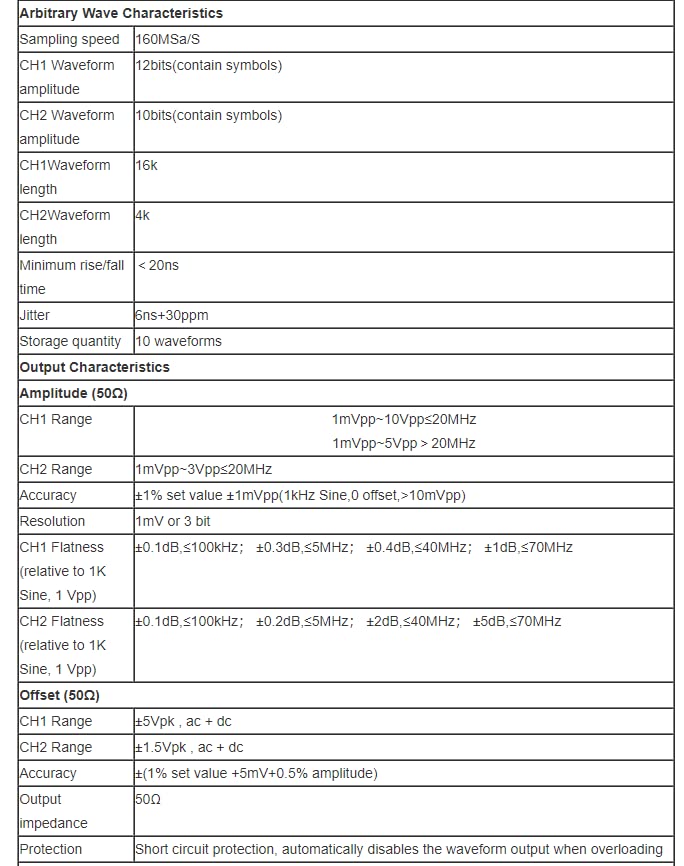

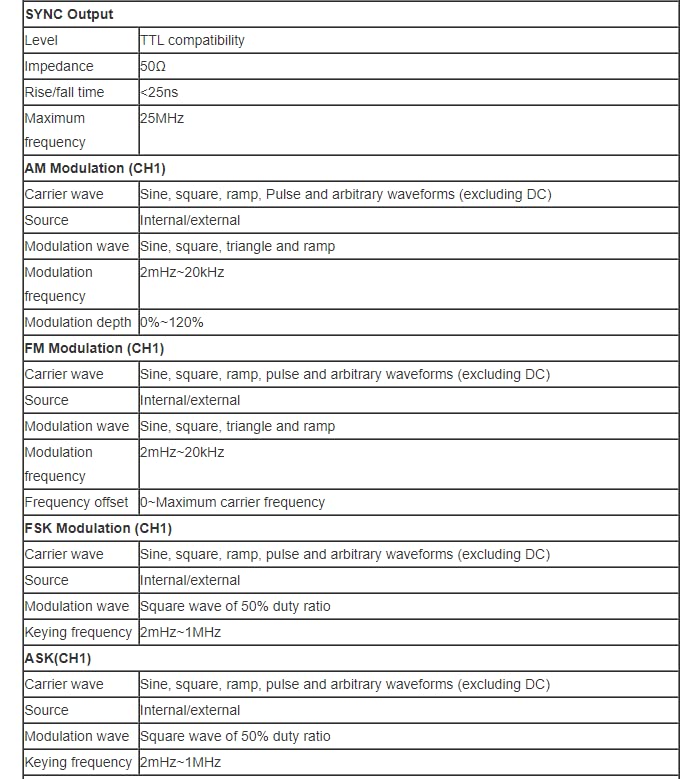

MeterTo MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service. Specification MODEL 25M Type Waveform types Sine, square, triangle, pulse, noise and arbitrary waves (including DC) Sine 1µHz~25MHz Square 1µHz ~ 5MHz Triangle 1µHz~500kHz Pulse100µHz~ 5MHz Arbitrary wave 1µHz ~ 5MHz Noise (-3dB) 7MHz Bandwidth Frequency Resolution 1µHz Frequency Accuracy ±5ppm 3.5-inch 480×320TFT LCD with clear graphic interface Chinese / English menu available File management supporting USB flash disk and local storage The two channels are independent from each other and have the function of phase synchronization Sampling rate of 160MSa/S, vertical resolution of 12 bit and storage depth of 16k Five basic waveforms and 60 arbitrary waveforms in-built Pulse wave output set in edge time Internal/external AM, FM, PM, ASK, FSK, PSK modulation function Output of linear/logarithmic frequency sweep and burst waveform Frequency meter of high precision of 200MHz With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage Multi-functional arbitrary waveform editing software equipped Supply voltage: 220V±10%,45~65Hz,Or Optional 110V±10%,45~65Hz Power consumption: <40W Environment: Operation 10 ℃ ~ +40 ℃,Non-operation -10℃~+60℃ Humidity range: Within the range of 0 ~ 40 ℃,≤90％ relative humidity Interface: RS232,USB Host,USB Device Size: 265 * 105 * 305 mm (width x height x deep) Weight: 2.6 kg Standard accessories 1 piece of 30A51 three-wire power line; 1 piece of 33A52 BNC coaxial cable; 1 CD-ROM 1 User guide.

• These series two-channel function / arbitrary waveform generator (hereinafter referred to as These series) adopts direct digital synthesis (DDS) technology to design, enabling to generate output signal which is accurate, stable and of low distortion.
