Coating Impact Resistance Tester Machine, Drop Weight Tool for Paint Film Evaluation & Metal Surface Durability, Selectable Height 0.5M/1M/1.2M Measurement for Laboratory Coating Quality Testing

Elevate your quality control protocols with our high-precision Paint Film Impact Tester. Designed for professionals who demand accuracy, this instrument proactively identifies durability issues by simulating real-world mechanical stress on industrial coatings and metal finishes. It provides actionable data to help you refine formulations and ensure long-term performance.Key Features1. Hardened Steel Components: Crafted from high-grade, rust-resistant materials for enhanced stability. 2. Clear Visual Scale: High-contrast markings ensure error-free height adjustments.3. Universal Compatibility: Ideal for automotive finishes, appliance paints, and anti-corrosion layers. SpecificationsImpact Heights : 50cm (19.7in) / 100cm (39.4in) / 120cm (47.2in)Hammer Mass: 1000g ± 1g (2.2lbs ± 0.002lbs)Impact Head Diameter : 8mm (0.315in)Concave Hole Diameter : 15mm (0.59in)Graduation : 1cm (0.39in)Impact Depth: 2mm ± 0.1mm (0.079in ± 0.004in)Base Dimensions : 17.5cm x 17.5cm (6.9in x 6.9in)Total Instrument Length : 0.5m Model: 87cm (34.2in)1m Model: 137cm (53.9in)1.2m Model: 156cm (61.4in)Equipment Weight : 0.5m: 8kg (17.6lbs)1m: 10kg (22lbs) 1.2m: 11kg (24.2lbs)Packing List1 x Paint Film Impact Tester Notes1. Do not release the hammer without a test plate to avoid damage to the impact head.2. Ensure the device is placed on a stable, level surface during operation.

• 【Standardized Precision Testing】: Specifically engineered for assessing coating impact resistance, this instrument utilizes a scientifically rigorous free-fall method to quantify paint film durability on metal substrates, ensuring repeatable results for laboratory compliance
• 【Variable Height Configurations】: Available in three versatile models—0.5m (19.7in), 1.0m (39.4in), and 1.2m (47.2in)—to accommodate diverse testing protocols and global industrial standards for protective layer evaluation

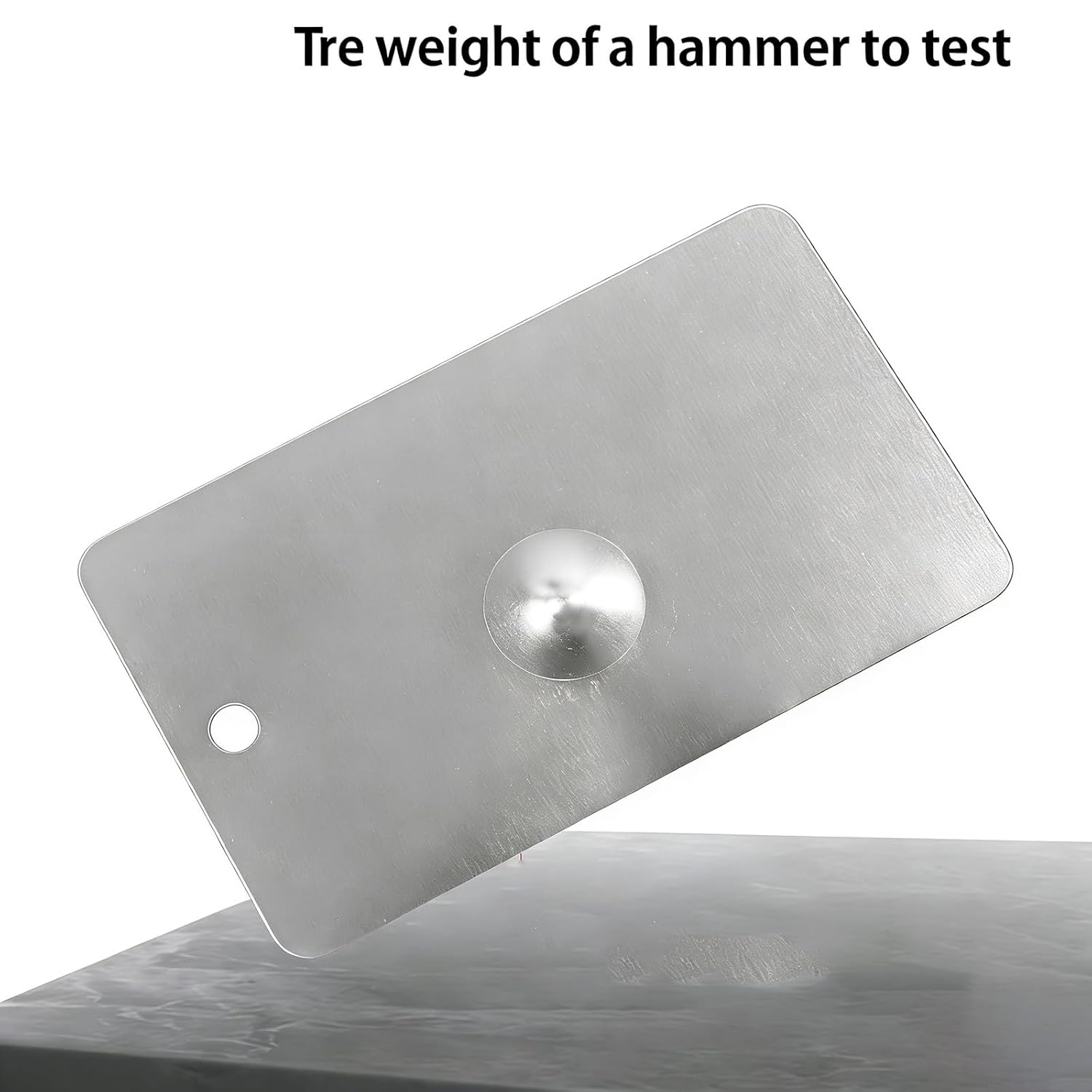

• 【Quick Deformation Assessment】: Instantly evaluate the impact ability of coatings by observing sample damage at preset levels, allowing for fast-track quality audits and formulation adjustments

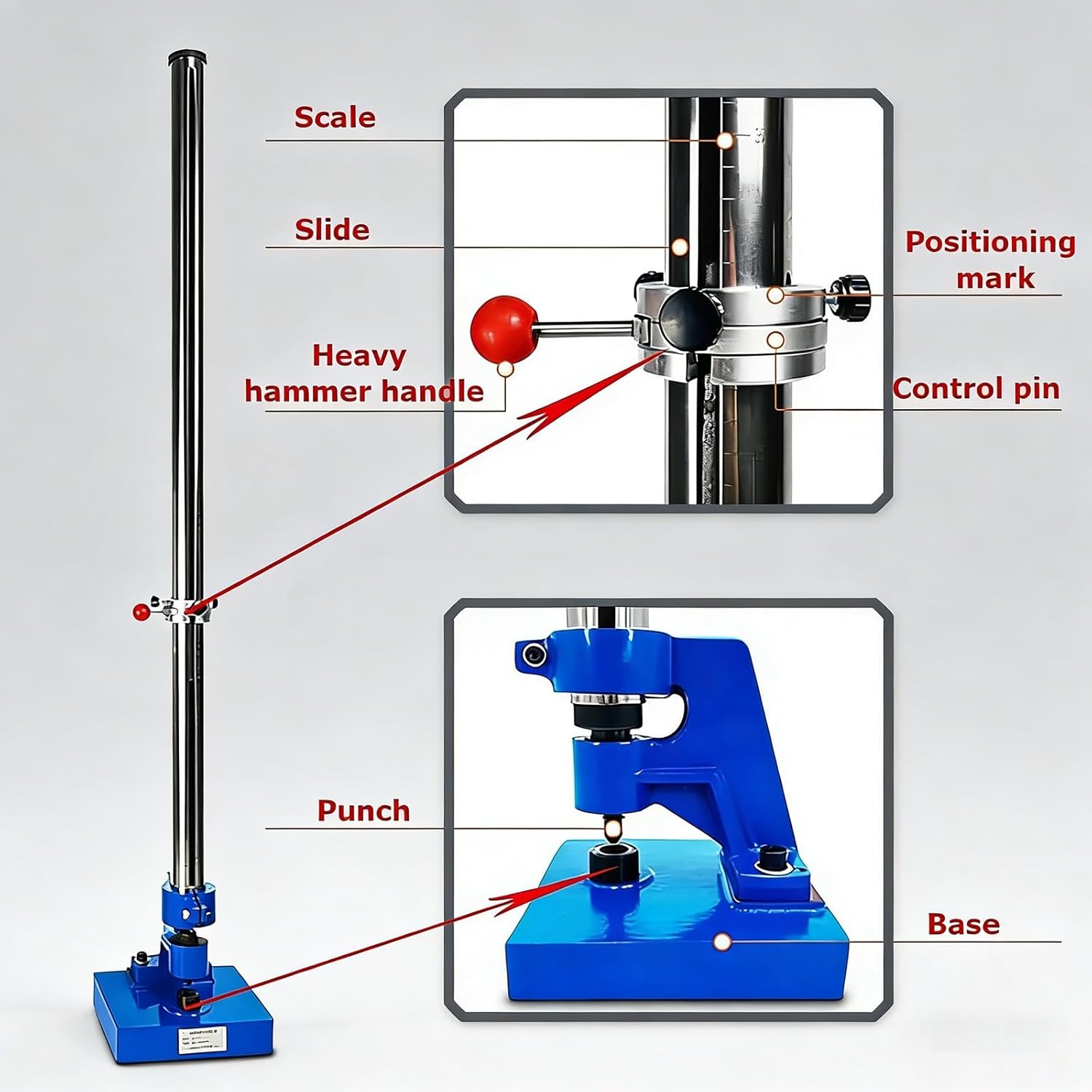

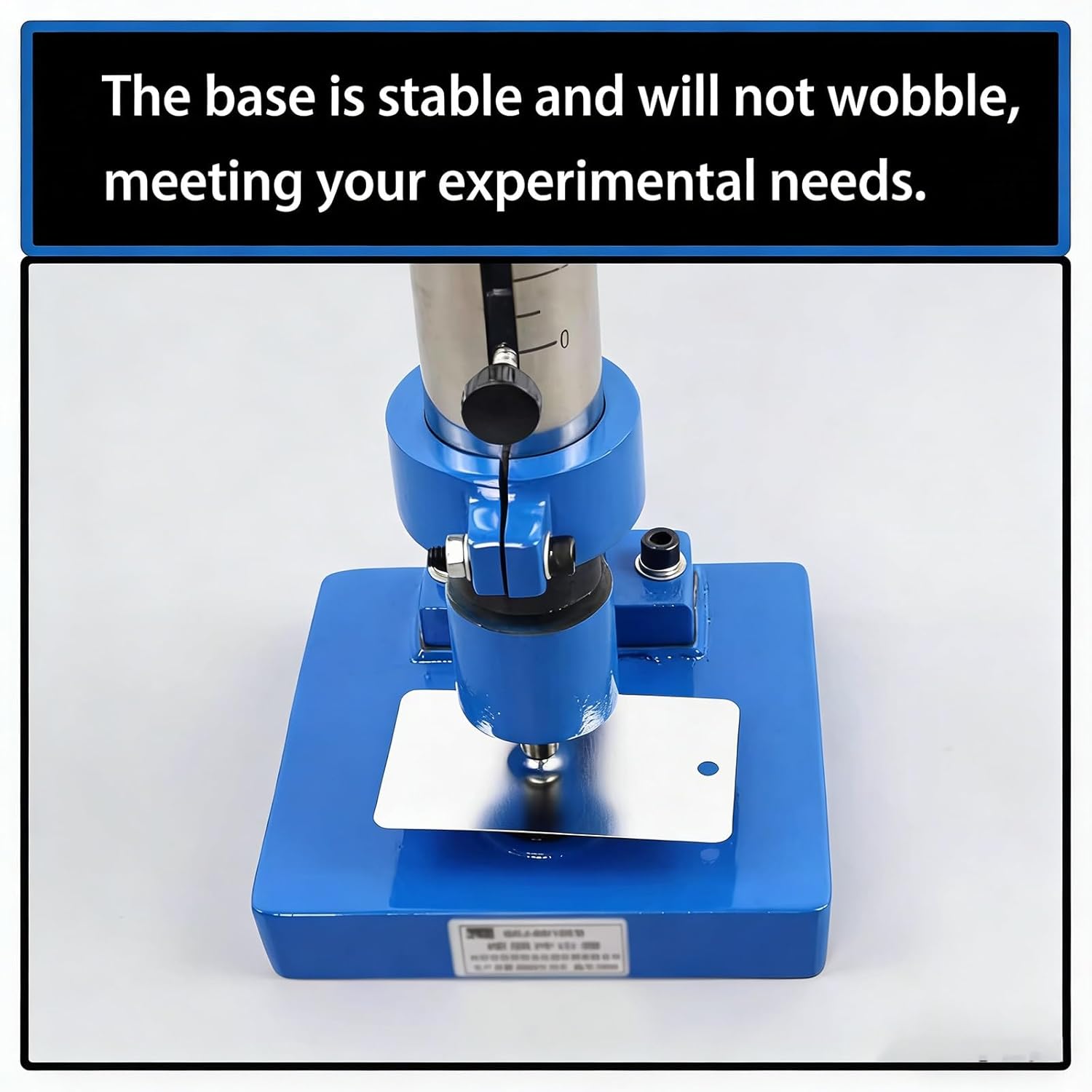

• 【Heavy-Duty Industrial Construction】: Built with a reinforced steel shaft and a high-stability metal base, the tester is designed for high-stress environments, maintaining structural integrity through repeated impact cycles
• 【Simple & Safe Mechanical Operation】: The intuitive drop-mechanism and stop-collar design allow for effortless operation without complex electrical setups, making it ideal for both controlled labs and on-site construction inspections
